Single station battery opperated irrigation timer- 400A-075

400A Series Battery Operated Controller

400A-075 (RBC 7000 equivalent)

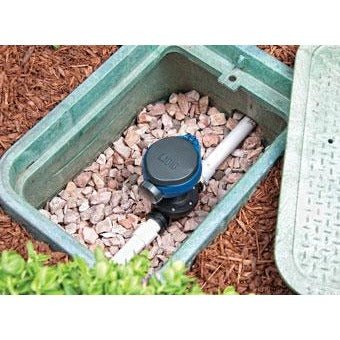

Designed for residential and commercial applications or where AC power is unavailable, the rugged 400A series Single-Station Battery Operated Controller with sensor connection is completely assembled on a 3/4" globe valve. Outfitted with the latest and most efficient electronic management technology, the 400A series controller can operate for up to three years on two AA alkaline batteries. It is completely waterproof and able to operate in harsh environments, and offers a simple and dependable solution for any irrigation system above or below grade.

Features

• Powered by two AA alkaline batteries with a safe period of 60 seconds to replace without losing the program
• Watering flexibility with a selection of watering frequencies and four start times
• Seven buttons with integrated high resolution screen
• Easy-to-read LCD display with AM/PM clock and icon-based intuitive programming for easy navigation
• see more

DIG Part 400A-075

Controller Specifications:

• Type: DC
• Body: IP68
• Program mode: seven keypad buttons with integrated liquid crystal display
• Temperature range: 38°F to +130°F (3°C to +54°C)
• Power source: two AA alkaline batteries (not included)
• Latching Solenoid: 7-12 VDC, two-way, normally closed
• Completely waterproof (IP68 certified) - can operate in harsh environments
• Solenoid control orifice: .065 (1.65 mm)
• Encapsulated solenoid thread: 11/16"-12 UN male thread
• Retractable solenoid wire: 8.1" (coiled length when extended, approximately 36"
• Sensor connection: normally closed 6" (15 cm) yellow wire (16 AWG)
• Valve type: globe valves 3/4" (NPT)
• Materials:
  • Housing: high-impact plastic
  • Solenoid housing: glass reinforced nylon
  • Plunger & spacer: 430F stainless steel
  • Plunger rubber cap: EPDM
  • O-ring: Buna-N
  • RoHS compliant

In-line Valve Specifications:

• Valve type: inline globe
• Valve sizes: 3/4” NPT
• Valve inlet and outlet: female pipe thread
• Operating pressure range: 10-150 PSI (.7-10.5 BAR)
• Bonnet solenoid thread: 3/4”-20 UNEF female threaded
• Bonnet/solenoid adapter: 11/16"-12 UN female thread x 3/4”-20 UNEF male threaded
• Flow rates:
  • 3/4": .1 to 28 GPM (.23 to 6.4 m3/h)
• Materials:
  • Valve housing and bonnet: reinforced nylon
  • Diaphragm: NBR (Buna-N)
  • Spring and plunger: stainless steel 430F
  • Bonnet bolts: stainless steel
  • Plunger rubber cap: EPDM
  • O-ring: Buna-N

Programming options

• Watering duration: 1 minute up to 5 hours and 59 minutes set in 1-minute increments
• Watering frequency: weekly or cyclical schedule with odd days, even days, or intervals from one to thirty (1- 30) days utilizing 365 day yearly calendar with leap year.
• Up to four start times per day in weekly or cyclical schedule provides added flexibility for any type of watering application including sandy or clay soil.
• Rain Off/Delay option with automatic restart up to 99 days
• Program Off option holds program until reactivated
• Manual On/Off button with semi-automatic feature utilizing the program runtime and shows the time left to run with quick override
